The design is aimed at edge computing, machine vision, image processing, and artificial intelligence.
GM-1000 can be configured with a range of 9th/8th generation Intel CPUs, including Xeon and Core i up to eight cores. It supports dual channel DDR4 2666MHz SO-DIMM up to 64GB. It has more I/Os than you can point a stick at including 4 x COM, 2 x GbE LAN, 8 x USB, 1 x HDMI, and 1 x DVI-I. GM-1000 comes with an M.2 M key slot to support NVMe SSD, and M.2 E key slot to support CNVi for WiFi or Bluetooth connection which are commonly required in high speed data storage and communication.
All these functions are integrated in a small footprint just 260 mm x 200 mm x 85 mm,.

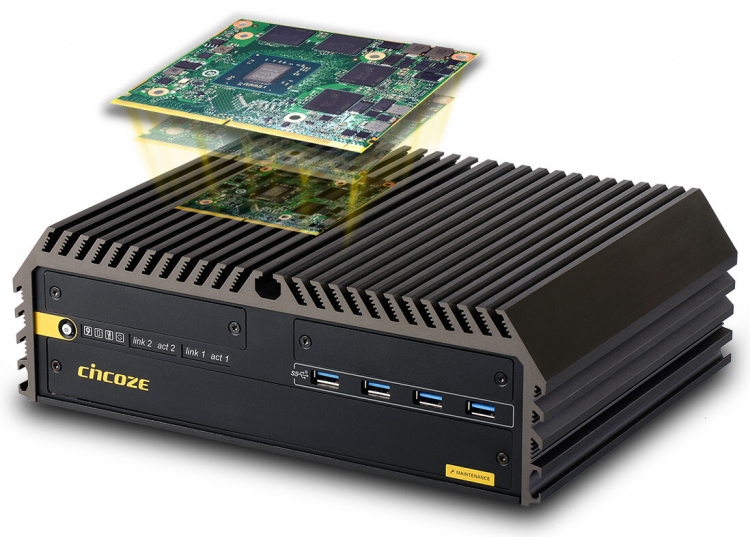

GM-1000 is designed with a power budget up to 360W which provides sufficient power for CPU and GPU to operate simultaneously. Additional GPU computing acceleration is realized through MXM 3.1 Type A/B expansion slot, which allows it to expand with an embedded GPU module from various manufacturers up to 160W.
To handle tremendous heat, which is generated from high computing power, the system adopts a unique thermal design including independent cooling systems for CPU and GPU, copper heat pipes and a special aluminum extrusion case. An optional external fan kit with 4 x individual fans is also available to create an active airflow.
Cincoze’s innovative CMI (Combined Multiple IO) and CFM (Control Function Module) technologies, it allows GM-1000 to expand additional functionalities according to customer’s needs. GM-1000 has multiple CMI interfaces to accommodate ready-to-use I/O modules, such as 2 x 10GbE LAN, 4 x GbE LAN, 4 x M12 GbE LAN, 16 DIOs, 2 x COM. Whereas CFM interfaces allows installing CFM modules for adding POE and power ignition sensing functions
To ensure reliability in extreme environments, GM-1000 is designed with high tolerance of vibration (5G) and shock (50G), wide range of voltage input (9~48 VDC), Over Voltage Protection, Over Current Protection and ESD Protection. The system is also certified with E-Mark for in-vehicle applications, EN50155 rolling stock standard, and EN62368-1 safety requirement.
No mention of price.
