Twelve X58 Boards roundup

by on12 August 2009

Index




Features:
Intel X58/iCH10R
6-phase VRM, dual lane design
CHiL CHL8316 VRM controller
Realtek ALC889
Marvell 88E8053 PCIe Gb LAN controller
JMicro JMB368 PCIe PATA controller
ITE IT8718F-S super I/O controller
ICS 9LPRS918JKLF clock generator
passive cooling of chipsets/VRM
8Mb BIOS, version: 0502, 0704
Mainboard Revision: 1.00



Slots:
2x PCIe 2.0 x16
1x PCIe x4
1x PCI

Memory:
6x Triple-Channel DDR3-slots for PC3-12800U memory up to 24GB

Storage:

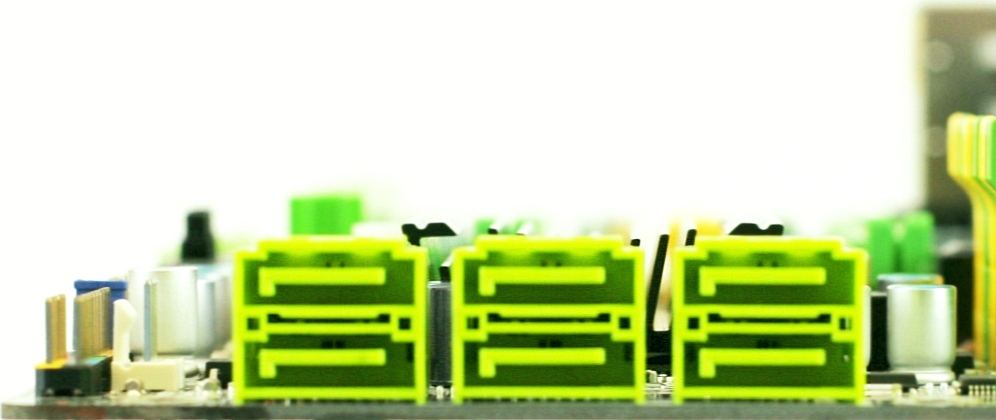

6-Port SATA II featuring RAID 0, 1, 5, 0+1, JBOD
1-Port IDE
1-Port Floppy



Backpanel ports:
1x PS/2 keyboard
1x Gb LAN
6x USB 2.0
7.1 analog audio
1x optical audio out
1x coxial audio out
1x CMOS-clear jumper



Accessories:
1x Dual-SLI bridge
1x Crossfire bridge-cable
1x Floppy cable
1x IDE cable
2x SATA cable
1x HDD-power to 2x SATA-power


This board is unique in our roundup, because it's micro-ATX form factor model. As you can see it's the smaller brother of the DK board, so all we said about that is also true for this one.




Overclocking:


It behaves excactly as the DK board, so here are just the screenshots:






Last modified on 13 August 2009
